Introduction

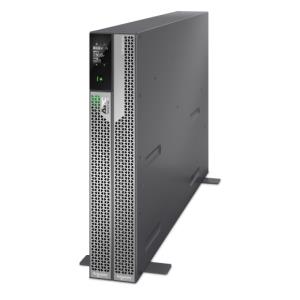

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5KVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hardwired input and Hardwired 3-Wire output. It embeded Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Features

UPS topology

Double-conversion (Online)

Output power capacity

5 kVA

Output power

5000 W

Waveform

Sine

Input operation voltage (min)

180 V

Input operation voltage (max)

275 V

Input frequency

40 - 70 Hz

Output operation voltage (max)

220 V

Heat dissipation

931 BTU/h

Noise level

55 dB

Battery

Battery technology

Lithium-Ion (Li-Ion)

Battery voltage

180 V

Design

Form factor

Rackmount

Rack capacity

2U

Product colour

Grey

International Protection (IP) code

IP20

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 15240 m

Certificates

Compliance certificates

CE, UKCA

Weight & dimensions

Width

432 mm

Depth

701 mm

Height

86 mm

Weight

29.2 kg

Packaging data

Package width

585 mm

Package depth

984 mm

Package height

392 mm

Package weight

38.5 kg

Logistics data

Warranty period

5 year(s)
