Introduction

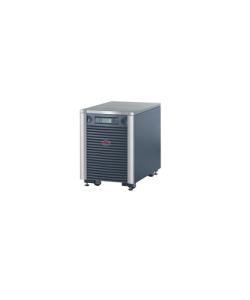

APC Symmetra, 5600 Watts / 8000 VA, Input 230V, 400V 3PH / Output 230V , Interface Port DB-9 RS-232, Smart-Slot , Extended runtime model

Includes: CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card

Standard Lead Time: Usually in Stock

Features

Output power capacity

8 kVA

Output power

5600 W

Input operation voltage (min)

155 V

Input operation voltage (max)

480 V

Input frequency

50/60 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Efficiency

90%

Crest factor

5:1

Emergency Power Off (EPO)

Yes

Output voltage Total Harmonic Distortion (THD)

5%

Input current Total Harmonic Distortion (THD)

7%

Noise level

62 dB

Ports & interfaces

AC outlets quantity

1 AC outlet(s)

RS-232 ports

1

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery recharge time

3 h

Design

Form factor

Tower

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 4500 m

Safety regulation & standards

Safety

C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE

Weight & dimensions

Width

483 mm

Depth

726 mm

Height

671 mm

Weight

201.8 kg

Packaging data

Package weight

229.6 kg

Other features

Battery type

SYBT5

Dimensions (WxDxH)

483 x 726 x 671 mm

Nominal output voltage

230 V

Nominal input voltage

230-400 V

Package dimensions (WxDxH)

599 x 997 x 914 mm
