Introduction

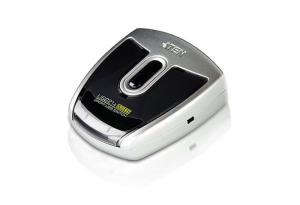

The US221A is a 2-port USB 2.0 Peripheral Switch that allows up to 2 computers to share the use of a single USB peripheral device (such as a printer, scanner, mass storage drive, etc.) on a one-at-a-time basis.
1x 2-Port USB 2.0 Peripheral Switch
1x USB Type-A to USB Type-B Cable (1.8m)
1x User Instructions

Ports & interfaces

USB 2.0 ports quantity

3

Performance

LED indicators

Y

Housing material

Plastic

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

71.8 mm

Depth

65.8 mm

Height

24.4 mm

Weight

123 g

Package weight

240 g

Package depth

389 mm

Package width

328 mm

Package height

330 mm

Logistics data

Products per master (outer) case

20 pc(s)

Master (outer) case gross weight

5.35 kg

Master (outer) case length

389 mm

Master (outer) case width

328 mm

Master (outer) case height

330 mm

Master (outer) case net weight

2.46 kg
