Introduction

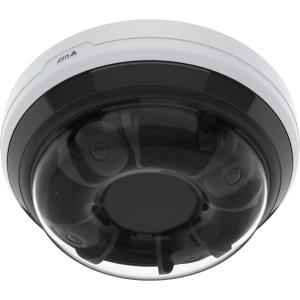

AXIS P3747-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.

Wide area surveillance with high-quality overview—24/7

Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.

Brilliant design for cost-effective installation

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.

Powerful with strong security

This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and effi-cient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

PTZ control

Yes

Preset points

Yes

Maximum operating distance

20 m

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Remote viewing

Yes

Built-in light

Yes

Number of languages

19

Languages support

Arabic, Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese

Design

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

Black, White

LED indicators

Activity

Housing material

Aluminium, Polycarbonate (PC)

International Protection (IP) code

IP66

IK code

IK10

Camera

Camera tilt control

Yes

Minimum illumination

0.1 lx

Horizontal field of view (thermal module)

360°

Lens viewing angle, horizontal

360°

Lens viewing angle, vertical

71.5 - 30.0°

Camera pixel size

2 µm

Camera shutter speed

1/19500 - 1 s

Panoramic camera

Sensor type (panoramic camera)

CMOS

Signal-to-Noise Ratio (SNR) (panoramic camera)

55 dB

Image sensor

Number of sensors

1

Optical sensor size

25.4 / 2.78 mm (1 / 2.78")

Progressive scan

Yes

Sensor type

CMOS

Lens system

Zoom capability

Yes

Number of lenses

3

Focal length range

3.18 - 7.42 mm

Fixed focus

Yes

Focus

Motorized

Night vision

Night vision

Yes

Night vision distance

20 m

LED type

IR

Number of illumination LEDs

2

Infra-red wavelength

850 nm

Video

Maximum resolution

2592 x 1944 pixels

Total megapixels

5 MP

Video formats supported

H.264, H.265

Video compression formats

M-JPEG, MPEG, MPEG4

Supported graphics resolutions

640 x 360, 640 x 480 (VGA), 2560 x 1440, 2592 x 1944

Video recording

Yes

Frame rate

20 fps

Video intelligence analytic

Yes

Video streaming

Yes

Noise reduction technology

2D noise reduction, 3D noise reduction

Image quality adjustment

Brightness, Contrast, Mirror, Saturation, Sharpness

Privacy masking

Yes

Text caption overlay

Yes

Image stabilizer

Yes

Bit rate control

Variable Bit Rate (VBR)

Audio

Built-in speaker(s)

Yes

Audio system

2-way

Audio system full duplex

Yes

Audio input channels

2 channels

Audio output channels

2 channels

Audio formats supported

RTSP

Frequency range

50 - 60 Hz

Audio detection

Yes

Network

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Quality of Service (QoS) support

Yes

Streaming method

Multicast

Number of simultaneous live view channels

4 channels

Storage

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Flash memory

8192 MB

RAM capacity

4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Security

Password protection

Yes

Video motion detection

Yes

Active tampering alarm

Yes

IP address filtering

Yes

Security algorithms

256-bit AES-XTS, FIPS 140-2, HTTPS, SNMP

HTTPS encryption

Yes

Alert notification type

E-mail

Privacy protection

Yes

Intelligent Video Surveillance (IVS) system features

Human detection, Vehicle detection

Motion sensor

Yes

Pixel counter

Yes

Human and vehicle targets classification

Yes

Digest authentication

Yes

Network access storage (NAS)

Yes

Management features

Remotely operated

Yes

Power

Power source type

PoE

Power consumption (typical)

10.8 W

Power consumption (max)

23.7 W

Operational conditions

Operating temperature (T-T)

-40 - 50 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

141 mm

Depth

220 mm

Height

75 mm

Weight

3 kg

Sustainability

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UL, VCCI, cUL

Features

License plate recognition

Yes

Packaging content

Number of cameras

1

Mounting kit

Yes

Mounting brackets included

Yes

Memory card included

Yes

Manual

Yes

Other features

Doesn't contain

BFR, CFR, PVC

Warranty period

5 year(s)
