Introduction

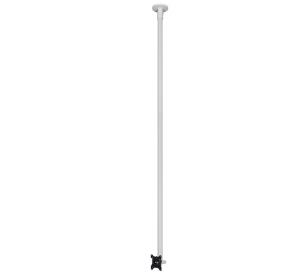

The BT5971 is a flat screen ceiling mount with tilt adjustment, designed for screens up to 28" / 20kg. Available with a 1 or 2 metre ceiling drop, the BT5971 features integrated cable management allowing cables to run through the centre of the pole and out through either the top or side of the ceiling mount, ensuring finished installations are neat and tidy. For longer drops, the pole length can be extended with a joiner (BT5924) and additional poles (BT5935) from the System V Range, whilst accessories can be added with the use of additional ø38mm accessory collars (BT5952) and compatible accessory mounts

Mounting

Maximum weight capacity

20 kg

Maximum screen size

71.1 cm (28")

Mounting

Screws

Maximum VESA mount

100 x 100 mm

Panel mounting interface

100 x 100 mm

Number of displays supported

1

Mounting type

Ceiling

Ergonomics

Tilt angle range

17 - -10°

Cable management

Yes

Ceiling mounting tube length (max)

201.9 cm

Tilt adjustment

Yes

Design

Product colour

White

Orientation

Landscape

Packaging data

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

83024200
