Introduction

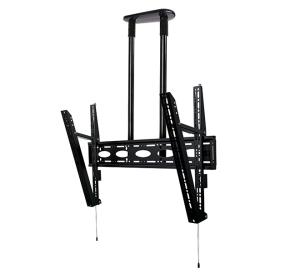

Designed to ceiling mount screens over 65", the BT8449 is an extra-large ceiling mount which is available with a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The twin pole design and heavy duty steel provides strength and rigidity, allowing for a maximum load of up to 80kg. Other features include a choice of 4 tilt positions from 0° up to 15°, post installation screen alignment and height adjustment screws to help level the screen once mounted. Available with a choice of Black, White or Chrome poles.

Mounting

Minimum screen size

165.1 cm (65")

Maximum weight capacity

80 kg

Maximum screen size

2.54 m (100")

Maximum VESA mount

1000 x 600 mm

Panel mounting interface

1000 x 600 mm

Number of displays supported

1

Mounting type

Ceiling

Ergonomics

Tilt adjustment

Yes

Tilt angle range

0 - 15°

Cable management

Yes

Ceiling mounting tube length (max)

100 cm

Design

Product colour

Black, Chrome

Technical details

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

83024200
