Introduction

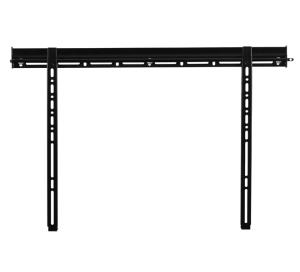

Designed to mount large sized screens just 20mm from the wall, with its low-profile design the BTV520 is ideal for home installations. Suitable for concrete, brick or stud walls up to 32”, this mount features a simple ‘hook-on’ installation and post installation screen alignment to make screen mounting as quick and simple as possible. The BTV520 also features a security locking bar to help prevent un-authorised removal of the screen. All mounting hardware included.

Mounting

Maximum weight capacity

70 kg

Maximum screen size

165.1 cm (65")

Maximum VESA mount

825 x 500 mm

Panel mounting interface

50 x 50,75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,600 x 400,800 x 400

Number of displays supported

1

Mounting type

Wall

Ergonomics

Distance to the wall (max)

2 cm

Design

Product colour

Black

Weight & dimensions

Width

891 mm

Depth (max)

2 cm

Height

583 mm

Logistics data

Master (outer) case gross weight

16.8 kg

Products per master (outer) case

6 pc(s)

Harmonized System (HS) code

85299097

Master (outer) case volume

0.049 cm³
