Introduction

IMPACT SERIES
ON-WALL KIOSKS

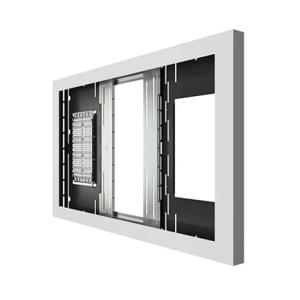

The Impact On-Wall Kiosk brings a sleek aesthetic to complement a variety of environments. A depth-adjustable exterior frame allows for a variety of displays to be used. Reversible hinges help avoid installation and service obstructions, and the exclusive design keeps the display mounted to the frame when opened, providing unparalleled service and maintenance access.

Chief’s newest Landscape On-Wall Kiosk includes a scissor-arm extension providing unparalleled service and maintenance access by extending the display up to 8” (203 mm) from the wall. A large interior area accommodates Chief PAC in-wall boxes and other storage components for clean, aesthetic cable management and organization.

Mounting

Maximum weight capacity

79.4 kg

Maximum screen size

177.8 cm (70")

Mounting type

Wall

Minimum VESA mount

300 x 300 mm

Maximum VESA mount

600 x 600 mm

Panel mounting interface

400 x 400,600 x 400,600 x 600,300 x 300

Number of displays supported

1

Design

Product colour

White

Weight & dimensions

Width

1663.7 mm

Height

1019.3 mm
