Introduction

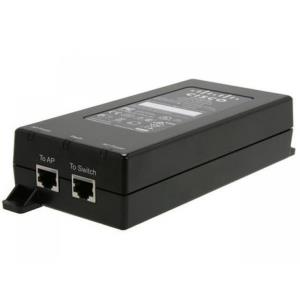

The Cisco Aironet Power Injector AIR-PWRINJ6= increases wireless LAN deployment flexibility of supported Cisco Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.

The single-port PoE injector provides up to 30 Watts and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. This power injector is for use with the Cisco Aironet 2800 series and 3800 series access points.

Network

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet (PoE)

Yes

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Cable types supported

Cat5

Features

Product colour

Black

LED indicators

Yes

Mean time between failures (MTBF)

100000 h

Safety

UL 60950-1, IEC/EN 60950-1

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

RJ-45 input ports

1

RJ-45 output ports

1

Power

Power over Ethernet (PoE) voltage

55 V

AC adapter input voltage

100 - 240 V

AC adapter frequency

50 / 60 Hz

Input current

0.67 A

Power over Ethernet (PoE) power per port

30 W

Certificates

Compliance certificates

CE, RoHS, WEEE

Certification

FCC Part 15.107, 15.109 Class B ICES-003 Class B (Canada) AS/NZS 3548 Class B VCCI Class B EN 301.489-1, 17 EN 55022 EN 55024 EN 60950 UL 60950 CSA C22.2 No. 60950 IEC 60950

Sustainability

Sustainability compliance

Yes

Operational conditions

Operating temperature (T-T)

-20 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Storage temperature (T-T)

-20 - 70 °C

Storage relative humidity (H-H)

0 - 90%
