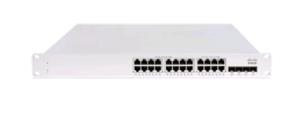

Meraki Ms150-24p-4g L2 Stck Cld-mngd 24ge 370w Poe Switch

Part Number:
MS150-24P-4G
Language:
UK

Introduction

Future-proof your networks with stackable access switches for Wi-Fi 7 and IoT deployments
Easily adopt new technology while boosting scalability, security, and resilience across your campus and branches.

Cisco Meraki MS150 stackable switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS150 series features a variety of options designed to meet the diverse needs of branch and campus deployments.

With 12 different models, the MS150 offers a combination of 1Gig and mGig ports supporting up to 740W of power, SFP+ uplinks, and backplane stacking. This line enables scalability to support the growing wired and wireless infrastructure deployments.

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Cloud-managed

Yes

ARP inspection

Yes

MIB support

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

4

Number of management ports

1 pc(s)

Network

Networking standards

IEEE 802.1x

10G support

No

Port mirroring

Yes

Policy-based routing

Yes

Half duplex

Yes

Link aggregation

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Yes

Data transmission

Switching capacity

56 Gbit/s

Static route

Yes

Security

DHCP features

DHCP snooping

Access Control List (ACL)

Yes

IGMP snooping

Yes

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Stackable

Yes

Form factor

1U

Product colour

Grey

LED indicators

Yes

Power

Power source

AC/PoE

Power supply included

Yes

AC input voltage

100 - 240 V

Power consumption (max)

422.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

370 W

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Heat dissipation

1573015 BTU/h

Weight & dimensions

Width

482 mm

Depth

250 mm

Height

44 mm

Weight

3.6 kg
