Introduction

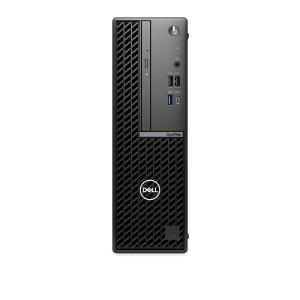

Commercial desktop with DDR5 memory, 8 native USBs including 1 USB-C, 1 native DisplayPort, and 1 native HDMI.

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i5

Processor generation

Intel® Core™ i5 (14th gen)

Processor model

i5-14500

Processor cores

14

Processor threads

20

Processor boost frequency

5 GHz

Performance cores

6

Efficient cores

8

Performance-core Max Turbo Frequency

5 GHz

Efficient-core Max Turbo Frequency

3.7 GHz

Performance-core base frequency

2.6 GHz

Efficient-core base frequency

1.9 GHz

Processor cache

24 MB

Processor cache type

Smart Cache

Number of processors installed

1

Number of processors supported

1

Processor base power

65 W

Maximum turbo power

154 W

Memory

Internal memory

16 GB

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x DIMM

Memory channels

Single-channel

Memory data transfer rate

4800 MT/s

Storage

Total storage capacity

512 GB

Storage media

SSD

Optical drive type

No

Number of storage drives installed

1

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express

NVMe

Yes

SSD form factor

M.2

SSD performance class

35

Compatible memory cards

Not supported

RAID support

No

Graphics

Discrete graphics card

No

On-board graphics card

Yes

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel UHD Graphics 770

Maximum on-board graphics card resolution

7680 x 4320 pixels

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX210

Antenna type

2x2

Bluetooth

Yes

Ports & interfaces

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

HDMI ports quantity

1

HDMI version

1.4b

DisplayPorts quantity

1

DisplayPort version

1.4a

Combo headphone/mic port

Yes

Number of rear USB ports

4

Number of front USB ports

4

Number of front audio ports

1

Number of SATA III connectors

2

Expansion slots

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

Design

Chassis type

SFF

Placement supported

Vertical

Water cooling system

No

Cable lock slot

Yes

Cable lock slot type

Kensington

Product colour

Black

Intel® vPro™ Platform Eligibility

Yes

Performance

Market positioning

Business

Motherboard chipset

Intel Q670

Audio chip

Realtek ALC3204-CG

Audio system

High Definition Audio

Built-in speaker(s)

No

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Product type

PC

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Operating system language

German, Dutch, English, French, Italian

Trial software

Activate Your Microsoft 365 For A 30 Day Trial

Power

Power supply

180 W

Power supply input voltage

90 - 264 V

Power supply input frequency

47/63 Hz

80 PLUS certification

80 PLUS Bronze

Operational conditions

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating vibration

0.26 G

Non-operating vibration

1.37 G

Non-operating shock

105 G

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR, EPEAT Silver

Weight & dimensions

Width

92.6 mm

Depth

292.8 mm

Height

290 mm

Packaging content

Display included

No

Mouse included on selected markets

Dell Optical Mouse-MS116 - Black

Keyboard included on selected markets

Dell Multimedia Keyboard-KB216 - UK (QWERTY) - Black

Carbon footprint

Total carbon footprint (kg of CO2e)

160

Carbon emissions, manufacturing (kg of CO2e)

80

Carbon emissions, logistics (kg of CO2e)

11

Carbon emissions, energy usage (kg of CO2e)

64

Carbon emissions, end-of-life (kg of CO2e)

4

Total carbon emissions, w/o use phase (kg of CO2e)

96

PAIA version

GaBi version 1, 2024
