Introduction

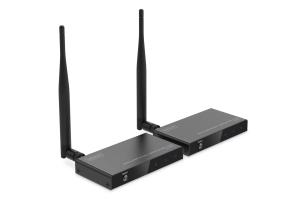

Wireless transfer of HDMI AV signals over a distance of up to 100 m (1:1 connection, unobstructed view) and distribution on up to 4 monitors

- Wireless transfer of Full HD AV signals over a distance of up to 100 m (1:1 connection, unobstructed view)
- Supports Point-to-Point and Multicast (Point-to-Multipoint) transfer
- Transfer of HDMI signals in Full HD with max. resolution of 1080p / 60 Hz
- Expandable for up to 4 receiver units (DS-55347) and offers video splitter functionality with additional receivers
- Distribute your HDMI signal on up to 4 displays
- Additional HDMI output (loop-out) on transmitter module for connection to an external monitor
- IR transmission to control the source device from output display
- Plug & Play - no software or driver required
- HDMI 1.4, HDCP 1.3

Experience ultimate flexibility and performance for the transfer of your Full HD AV signals with our wireless transfer system, which offers a range of up to 100 meters in a 1:1 connection with unobstructed view. Our system supports both Point-to-Point and Multicast (Point-to-Multipoint) transfers, which allows you the freedom of transferring your AV signal to multiple displays at the same time or connecting a single source with various target devices. With a maximum resolution of 1080p / 60 Hz, our system guarantees sharp and smooth reproduction of your content. You can also expand your system easily for up to 4 receiver units (DS-55347), to achieve video splitter functionality and share your HDMI signal on up to 4 displays. The transmission module features an additional HDMI output (loop-out) which enables you to connect an external monitor, while integrated IR transmission allows for convenient control of your source device directly from the output display (receiver unit). Our Plug & Play system does not require any additional software or driver installation and is ready for immediate use.

Features

Type

AV transmitter & receiver

Maximum resolution

1920 x 1080 pixels

Maximum transfer distance

100 m

Maximum refresh rate

60 Hz

LED indicators

Yes

Bandwidth

6.75 Gbit/s

Video compression formats

H.264

HDCP

Yes

Material

Metal

HDCP version

1.3

Product colour

Black

Antennas quantity

1

Ports & interfaces

Connectivity technology

Wireless

Wi-Fi

Yes

HDMI in

1

Number of HDMI outputs

2

HDMI version

1.4

Remote (IR) input

1

Remote (IR) output

1

DC-in jack

Yes

Power

Power source type

DC

Operating voltage (transmitter)

5 V

Operating voltage (receiver)

5 V

Power consumption (transmitter) (max)

3 W

Power consumption (receiver) (max)

1.5 W

External power adapter

Yes

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Weight & dimensions

Receiver dimensions (WxDxH)

63.5 x 118 x 18 mm

Receiver weight

170 g

Transmitter dimensions (WxDxH)

63.5 x 118 x 18 mm

Transmitter weight

172 g

Packaging data

Package width

196 mm

Package depth

243 mm

Package height

60 mm

Package weight

860 g

Packaging content

AC adapter included

Yes

Cables included

IR

Manual

Yes
