Introduction

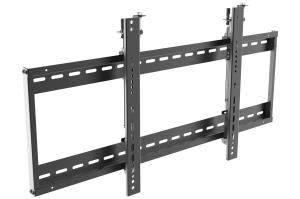

Perfect alignment and installation for your video wall

- Easy alignment with micro adjustments
- Lateral shift brackets enable fast alignment
- For most screens between 45" to 70"
- Max VESA 600x400
- Kickstand provides 12°of tilt for easy cable management and maintenance
- Anti-theft design for additional security (padlock required)

With this economic video wall mount you can easily set up a video wall. Thanks to the microadjustment at 6 points you can easily align the screens. Using the kickstand you can lift the mount of the wall for easy access to the cables.

Mounting

Minimum screen size

114.3 cm (45")

Maximum weight capacity

70 kg

Maximum screen size

177.8 cm (70")

Minimum VESA mount

200 x 200 mm

Maximum VESA mount

600 x 400 mm

Panel mounting interface

200 x 200,300 x 300,400 x 200,400 x 400,600 x 400

Mounting type

Wall

Ergonomics

Tilt angle range

-5 - 3°

Distance to the wall (max)

7.6 cm

Design

Product colour

Black

Housing material

Metal

Weight & dimensions

Width

934 mm

Depth

76 mm

Height

483 mm

Weight

5.48 kg

Other features

Adjustable

Y
