Introduction

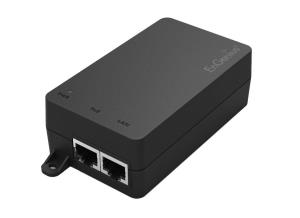

EnGenius PoE Adapter is easily to power and to network over Ethernet for increasing scalability and reducing
installation time and cost.
EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an 802.3at/af - compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.

Outdoor Networking Facility and Low Port Density Installations
The EPA5006GAT PoE adapter is fully compliance with 802.3at/af defection mechanism, with disconnect, short -circuit and
overload protection to assure the securable and reliable connection for 802.3at/af devices. By sending maximum 30W output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.

Network

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet (PoE)

Y

Networking standards

IEEE 802.3af,IEEE 802.3at

Duplex system

Full

Features

Product colour

Black

Wall mountable

Y

Maximum operating distance

100 m

LED indicators

Power

Power protection features

Over current, Over voltage, Short circuit

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Output power

30 W

AC adapter input voltage

100 - 240 V

AC adapter frequency

47/63 Hz

Input current

0.8 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 90%

Storage temperature (T-T)

-30 - 80 °C

Weight & dimensions

Dimensions (WxDxH)

100 x 58.4 x 33.4 mm
