Introduction

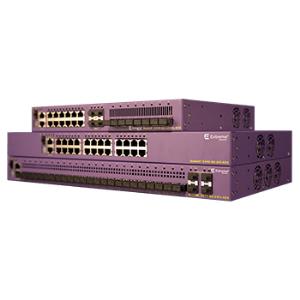

The ExtremeSwitching X440-G2 series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS, a highly resilient OS providing continuous uptime, manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching, flexible stacking, PoE-plus support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge.

The X440-G2 Series easy-to-use, yet powerful, management services include role-based policies for controlled access to specific network applications. Select X440-G2 Series switches can also be cloud managed via ExtremeCloud, Extreme Networks innovative single-pane subscription-based management solution.

Management features

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Y

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

12

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

4

Console port

RJ-45

Power connector

DC-in jack

Network

Networking standards

IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z

Full duplex

N

Flow control support

Y

Link aggregation

Y

VLAN support

Y

Number of VLANs

4092

Data transmission

Switching capacity

104 Gbit/s

Forwarding rate

77.4 Mpps

MAC address table

16000 entries

Jumbo frames support

Y

Design

Rack mounting

Y

Product colour

Burgundy

LED indicators

Y

Wall mountable

Y

Performance

Built-in processor

Y

Processor frequency

1000 MHz

Memory type

DDR3-SDRAM

Internal memory

1024 MB

Flash memory

4096 MB

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

32 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

0 - 60 °C

Weight & dimensions

Width

305 mm

Depth

261 mm

Height

44 mm

Weight

2.64 kg
