Processor

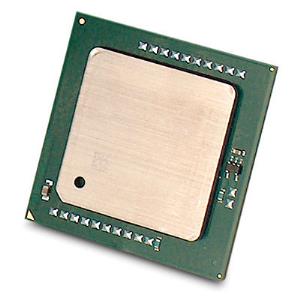

Processor model

E5-2650

Processor base frequency

2 GHz

Processor family

Intel® Xeon® E5 Family

Processor cores

8

Processor socket

LGA 2011 (Socket R)

Component for

Server/workstation

Processor lithography

32 nm

Processor threads

16

System bus rate

8 GT/s

Processor operating modes

64-bit

Processor boost frequency

2.8 GHz

Processor cache

20 MB

Processor cache type

L3

Thermal Design Power (TDP)

95 W

VID Voltage Range

0.6 - 1.35 V

Bus type

QPI

Number of QPI links

2

Memory bandwidth supported by processor (max)

51.2 GB/s

Memory

Maximum internal memory supported by processor

384 GB

Memory types supported by processor

DDR3-SDRAM

Memory clock speeds supported by processor

800,1066,1333,1600 MHz

Memory channels

Quad-channel

ECC

Y

Graphics

On-board graphics card

N

Features

Execute Disable Bit

Y

Idle States

Y

Thermal Monitoring Technologies

Y

Market segment

Server

Maximum number of PCI Express lanes

40

PCI Express slots version

3.0

Supported instruction sets

AVX

Scalability

2S

CPU configuration (max)

2

Embedded options available

N

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology)

Y

Intel® Identity Protection Technology (Intel® IPT)

N

Intel® Turbo Boost Technology

2.0

Intel Flex Memory Access

N

Intel® AES New Instructions (Intel® AES-NI)

Y

Enhanced Intel SpeedStep Technology

Y

Intel Trusted Execution Technology

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel Demand Based Switching

Y

Intel 64

Y

Intel Virtualization Technology (VT-x)

Y

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel® vPro™ Platform Eligibility

Y

Operational conditions

Tcase

77.4 °C

Other features

Compatibility

DL360P GEN8
