Introduction

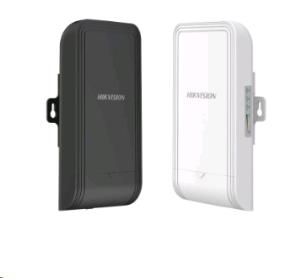

The dual wireless bridge can be applied in industries, such as wireless video security, railway, transportation, power and other industries, wireless video/data transmission, wireless coverage, carrier wireless backbone network construction, Wi -Fi wireless coverage, rural information construction, and wireless network coverage. The long-distance transmission of the device can guarantee multi-channel HD video transmission.

Features

• Up to 500 m wireless transmission distance
• 300 Mbps 802.11n wireless bridge
• Built-in 7dBi 2 x 2 MIMO antenna
• Visualized topology management
• Real-Time alarm push technology

Specifications

General

• Product Dimensions (W × H × D) : 90.8 mm × 57.87 mm × 187.87 mm (3.57'' × 2.27'' × 7.39'')
• Package Dimensions (W × H × D) : 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
• Net Weight : 0.26 kg (0.57 lb) per device
• Gross Weight : 0.8 kg (1.76 lb)
• Packing List : Wireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1
• Packing Method : Packing in pairs
• Working Temperature : -30 °C to 70 °C (-22 °F to 158 °F)
• Working Humidity : 5% to 95% (no condensation)
• Storage Temperature : -40 °C to 80 °C (-40 °F to 176 °F)
• Storage Humidity : 5% to 95% (no condensation)
• Installation Mode : Pole Mounting
• Ingress Protection : IP55
• Power Consumption : 1.89 W for typical (1-ch 2MP IPC), Max. 3.7 W

Wireless Parameter

• Max. Transmission Rate of Air Interface : ≤ 300 Mbps
• Wireless Standard : IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
• Working Frequency Band : 2400 MHz ~ 2483.5 MHz
• Antenna Gain : 7 dBi
• Antenna Angle : (H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°
• Transmitting Power :23 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity : -87±2 dBm @HT40 MCS0
• Throughput Rate : PTP: ,50 Mbps/0.2 KM(HT40),30 Mbps/0.5 KM(HT40)

Hardware Parameter

• Network Interface : 2 × 10/100 Mbps RJ45 ports
• LED Indicator : Power
• indicator,LAN indicator,Signal intensity indicator
• Reset : Hardware resetting button
• Power Supply : 12-24 VDC Passive PoE

Software Function

• Application Function : IFM,IPM
• Channel Width : 0/20/40 MHz
• Channel Selection : Auto/manual selection
• Security Mode : WPA2-PSK
• Security Mechanism : Wireless network name hidden
• Network Protocol
• NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
• Management Method : HCP,Web,iVMS-4200,HPP
• System Log : Syslog,Control center information
