Introduction

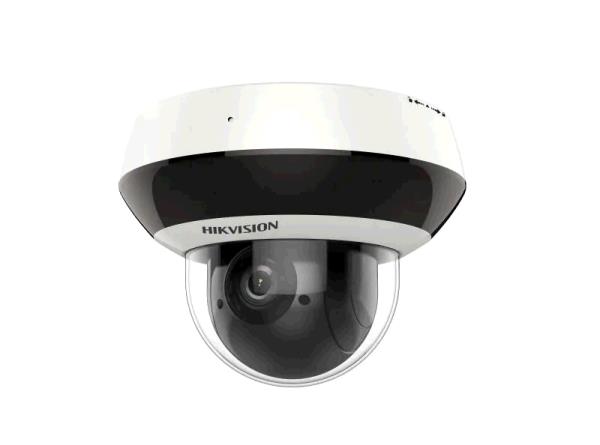

Hikvision DS-2DE2A404IW-DE3/W(S6) 4 MP 4× IR PTZ Network Wi-Fi Camera can be widely used in indoor scenes, such as corridor, office, factory, convenience store, and restaurant.

Performance

Type

IP security camera

Placement supported

Indoor

Connectivity technology

Wired & Wireless

PTZ control

Yes

PTZ status display

Yes

Preset points

Yes

Preset freezing function

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Dynamic range

120 dB

Design

Form factor

Dome

Mounting type

Ceiling

Product colour

Black, White

Protection features

Dust resistant, Vandal proof, Water resistant

International Protection (IP) code

IP66

IK code

IK10

Fog proof

Yes

Camera

Camera pan control

Yes

Camera tilt control

Yes

Minimum illumination

0 lx

Lens viewing angle, horizontal

96.7 - 31.6°

Lens viewing angle, vertical

51.1 - 17.7°

Lens viewing angle, diagonal

115.1 - 36.3°

Tilt angle range

0 - 90°

Tilt speed

100 °/sec

Tilt preset speed

100 °/sec

Pan range

0 - 350°

Pan speed

100 °/sec

Pan preset speed

100 °/sec

Preset programs quantity

300

Camera shutter speed

1/1 - 1/30000 s

Number of Privacy masking areas

24

Image sensor

Number of sensors

1

Optical sensor size

25.4 / 2.8 mm (1 / 2.8")

Progressive scan

Yes

Sensor type

CMOS

Lens system

Zoom capability

Yes

Optical zoom

4x

Digital zoom

16x

Number of lenses

1

Zoom speed

2 s

Detect distance

180 m

Observe distance

71.4 m

Recognize distance

36 m

Focal length range

2.8 - 12 mm

Auto focus

Yes

Focus

Motorized/Manual

Maximum aperture number

1.5

Identify distance

18 m

Night vision

Night vision

Yes

Night vision distance

20 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

2560 x 1440 pixels

Total megapixels

4 MP

Video compression formats

H.264, H.265, M-JPEG

Supported graphics resolutions

352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440

Supported video modes

720p, 1080p, 1440p

Video recording

Yes

Frame rate

30 fps

Analog signal format system

NTSC, PAL

Video streaming

Yes

Noise reduction

Yes

Noise reduction technology

3D noise reduction

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Yes

Back Light Compensation (BLC)

Yes

Highlight Compensation (HLC)

Yes

Region of Interest (ROI) encoding

Yes

Smart IR

Yes

3D positioning

Yes

Audio

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Audio formats supported

AAC, G.711 A-law, G.711 µ-law, G.722.1, G.726, MP2L2, PCM

Signal-to-Noise Ratio (SNR)

52 dB

Built-in microphone

Yes

Bit rate range

16 - 192 Kbit/s

Sample rates

8 - 48 kHz

Network

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3af

Supported network protocols

IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets

Wi-Fi

Yes

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Bluetooth

No

Channel bandwidth

40 MHz

Frequency band

2.4 - 2.4835 GHz

Number of users

32 user(s)

User access level

Administrator, Operator, User

Quality of Service (QoS) support

Yes

Client interoperability

iVMS-4200, Hik-Connect Pro

Live view

Yes

Number of simultaneous live view channels

20 channels

Storage

Built-in HDD

No

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size

256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Security

Password protection

Yes

Video motion detection

Yes

Active tampering alarm

Yes

IP address filtering

Yes

Security algorithms

64-bit WEP, 128-bit WEP, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK

HTTPS encryption

Yes

Alert notification type

E-mail

Intelligent Video Surveillance (IVS) system features

Intrusion

Mirror

Yes

Digital watermark

Yes

Automatic Network Replenishment (ANR)

Yes

Digest authentication

Yes

Network access storage (NAS)

Yes

Management features

Web-based management

Yes

Reset button

Yes

Behavior analysis

Audio exception detection, Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection

Power

Power source type

DC, PoE

Power consumption (max)

11.2 W

DC output voltage

12

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

System requirements

Windows operating systems supported

Yes

Weight & dimensions

Height

101.7 mm

Diameter

13.1 cm

Weight

530 g

Packaging content

Number of cameras

1
