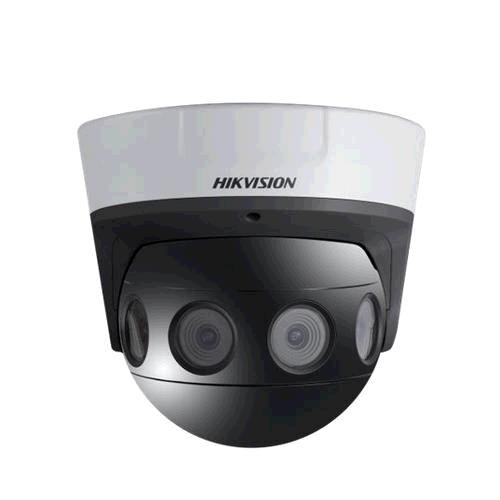

Email: info@conxion.beHikvision Cameras are a versatile solution for all of your security needs. They feature a wide range viewing angle that captures images with great resolution.
| PROPERTIES | |
|---|---|
| Type of camera: | IP security camera |
| Connection: | Wired |
| Form: | Dome |
| Placement: | Inside Outside |
| Edit: | Ceiling |
| Colour: | Black and white |
| Material: | Aluminium, Plastic |
| Protection Features: | Dust Resistant, Vandal Resistant, Water Resistant |
| IP certification: | IP67 |
| CAMERA | |
| Mega Pixels: | 32MP |
| Focal Length: | 2.8mm |
| Shutter speed: | 1/25 - 1/100000 sec |
| frame rate: | 30 fps |
| Compression: | H.264,H.265 |
| Analog Standard: | NTSC,PAL |
| Viewing angle (horizontal): | 102° |
| Viewing angle (vertical): | 55° |
| Viewing angle (diagonal): | 120° |
| Swivel range: | 0 - 355° |
| Tilt Angle Range: | 0 - 90° |
| Photosensitivity: | 0.001 Lux |
| LENS | |
| Minimum aperture: | 1.2 |
| Maximum aperture: | 1.4 |
| SENSOR | |
| Sensor: | CMOS |
| sensor size: | 25.4/8mm (1/8") |
| Maximum resolution: | 8160 x 3616 Pixels |
| Progressive scan: | Yes |
| OPTIONS | |
| Wide Dynamic Range (WDR): | Yes |
| Day/night mode: | Yes |
| Alarm input/output: | Yes |
| Back Light Compensation (BLC): | Yes |
| Highlight Compensation (HLC): | Yes |
| IR Crossovers: | Yes |
| Privacy masking: | Yes |
| Video streaming: | Yes |
| Anti flicker: | Yes |
| NIGHT VISION | |
| night vision: | Yes |
| Night vision distance: | 20 m |
| LED type: | IR |
| AUDIO | |
| Audio Input Channels: | 1 |
| Audio output channels: | 1 channels |
| Audio codecs: | G.711/G.722.1/G.726/MP2L2/PCM |
| STORAGE | |
| Integrated card reader: | Yes |
| Compatible Memory Cards: | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Memory card capacity (max): | 128GB |
| NETWORK CONNECTION | |
| Network connection: | Yes |
| Interface type: | RJ-45 |
| Number of Ethernet ports: | 1 |
| Ethernet Speed: | 10/100/1000Base-T(X) |
| WiFi: | new |
| Wi-Fi standards: | IEEE 802.1x,IEEE 802.3at |
| Power over Ethernet (PoE): | Yes |
| QoS support: | Yes |
| Supported network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| CURRENT | |
| Power supply source: | DC, Power over Ethernet (PoE) |
| Power consumption (max): | 17 W |
| Output voltage (DC): | 12 |
| Output Current (DC): | 1.4 A |
| WEIGHT AND SIZE | |
| Weight: | 3.5 kg |
| Height: | 190mm |
| Width: | 207mm |
| Depth: | 208mm |
