Introduction

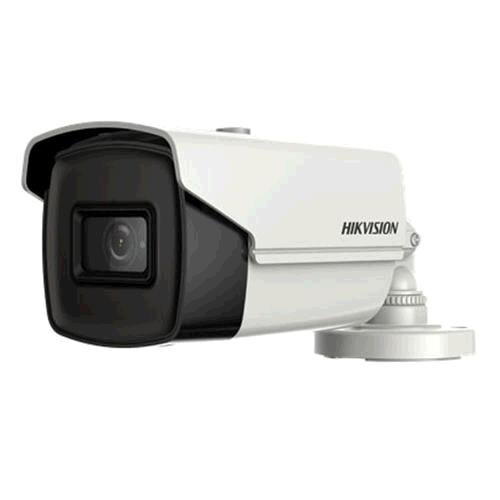

Value Series Cameras offer a cost-effective, high quality video surveillance solution. Users will enjoy high definition video, plug-and-play through coaxial cable, high quality components, and great durability.

Performance

Type

CCTV security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Number of languages

1

Languages support

English

Design

Form factor

Bullet

Mounting type

Ceiling/wall

Product colour

White

Housing material

Metal, Plastic

Protection features

Dust resistant, Water resistant

International Protection (IP) code

IP67

Camera

Minimum illumination

0 lx

Field of view (FOV) angle

102.2°

Angle of rotation

360°

Tilt angle range

0 - 180°

Pan range

0 - 360°

White balance

Auto, Manual

Camera shutter speed

PAL: 1/12.5 - 1/50000 ,NTSC: 1/15 - 1/50000

Image sensor

Number of sensors

1

Progressive scan

Yes

Sensor type

CMOS

Lens system

Number of lenses

1

Maximum aperture number

1.2

Fixed focal length

2.8 mm

Night vision

Night vision

Yes

Night vision distance

60 m

LED type

IR

Video

Maximum resolution

3840 x 2160 pixels

Total megapixels

8.29 MP

Frame rate

30 fps

Analog signal format system

NTSC, PAL

Gain control type

Auto

Image quality adjustment

Brightness, DNR, Mirror, Sharpness

Back Light Compensation (BLC)

Yes

Smart IR

Yes

Network

Ethernet LAN

No

Wi-Fi

No

Bluetooth

No

Storage

Built-in HDD

No

Power

Power source type

DC

Power consumption (max)

5.3 W

DC output voltage

12

Operational conditions

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

86.7 mm

Height

81.9 mm

Length

217.9 mm

Weight

435 g

Packaging content

Number of cameras

1
