Introduction

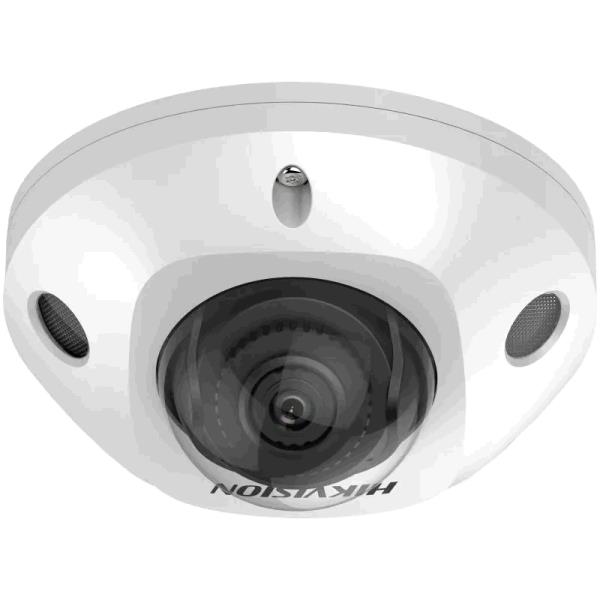

Discover Hikvision’s latest ultra-powerful network cameras
Hikvision’s Ultra-Series Network Cameras, known for their exceptional performance, are specifically designed to enhance overall security in virtually any environment. Equipped with durable hardware, advanced software capabilities, and the Hikvision Embedded Open Platform (HEOP) for third-party applications, these network cameras offer a cutting-edge security solution. Discover the surprising technology behind the Ultra-Series, providing unmatched reliability and scalability that significantly contributes to the success of systems integrators and installers across various markets. Explore how these powerful cameras can deliver critical, cost-effective solutions for your next installation by reading on.

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

Auto-tracking

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Alarm input/output

Yes

Open platform version

HEOP 2.0

AI software framework

Caffe, ONNX, PaddlePaddle, TensorFlow

Supported programming languages

C, C++

Number of languages

33

Languages support

Multi

Dynamic range

120 dB

Design

Form factor

Dome

Mounting type

Ceiling

Product colour

White

Housing material

Aluminium, Plastic

International Protection (IP) code

IP67

IK code

IK08

Fog proof

Yes

Camera

Camera pan control

Yes

Camera tilt control

Yes

Minimum illumination

0 lx

Angle of rotation

360°

Lens viewing angle, horizontal

78°

Lens viewing angle, vertical

38°

Lens viewing angle, diagonal

96°

Tilt angle range

0 - 75°

Pan range

-30 - 30°

Camera shutter speed

1/100000 - 1/3 s

Number of Privacy masking areas

4

Image sensor

Number of sensors

1

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Progressive scan

Yes

Sensor type

CMOS

Lens system

Number of lenses

1

Detect distance

115 m

Observe distance

45 m

Recognize distance

23 m

Maximum aperture number

1.6

Identify distance

11 m

Fixed focal length

4 mm

Night vision

Night vision

Yes

Night vision distance

30 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

3200 x 1800 pixels

Total megapixels

6 MP

Video formats supported

H.264, H.264+, H.265, H.265+

Video compression formats

H.264, H.264+, H.265, H.265+

Supported graphics resolutions

2688 x 1520, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360, 1280 x 720 (HD 720), 3200 x 1800

Supported video modes

360p, 1080p, 720p, 480p, 1520p

Video recording

Yes

Frame rate

30 fps

Video streaming

Yes

Noise reduction

Yes

Noise reduction technology

3D noise reduction

Image quality adjustment

Brightness, Contrast, Saturation, Sharpness

Privacy masking

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Bit rate

32 Kbps - 16 Mbps

Back Light Compensation (BLC)

Yes

Highlight Compensation (HLC)

Yes

Region of Interest (ROI) encoding

Yes

Smart IR

Yes

Audio

Audio formats supported

AAC-LC, G.711, G.711 A-law, G.711 µ-law, G.722.1, G.726, MP2L2, MP3, PCM

Signal-to-Noise Ratio (SNR)

52 dB

Built-in microphone

Yes

Bit rate range

16 - 320 Kbit/s

Sample rates

8 - 48 kHz

Network

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet

Networking standards

IEEE 802.3af

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP

Wi-Fi

No

Bluetooth

No

Number of users

32 user(s)

User access level

Administrator, Operator, User

Live view

Yes

Number of simultaneous live view channels

6 channels

Storage

Built-in HDD

No

eMMC capacity

2 GB

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size

512 GB

Flash memory

40 MB

RAM capacity

350 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Security

Alarm input channels

1

Alarm output channels

1

Password protection

Yes

Video motion detection

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Intelligent Video Surveillance (IVS) system features

Face detection, Intrusion, Line crossing detection, People counting, Region entrance detection, Region exiting detection

Heartbeat

Yes

Mirror

Yes

Digital watermark

Yes

Password reset via email

Yes

Flash log

Yes

Audit log

Yes

Digest authentication

Yes

Network access storage (NAS)

Yes

Management features

Reset button

Yes

Power

Power source type

DC, PoE

Power consumption (max)

8 W

Power consumption (Power over Ethernet (PoE))

9 W

DC output voltage

12

DC output current

0.66 A

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Weight & dimensions

Height

57.4 mm

Diameter

11 cm

Weight

385 g

Packaging data

Package width

134 mm

Package depth

134 mm

Package height

108 mm

Package weight

620 g

Sustainability

Sustainability compliance

Yes

Compliance certificates

BIS, UL, WEEE, CB, CE, REACH, RoHS

Packaging content

Number of cameras

1

Manual

Yes
