Introduction

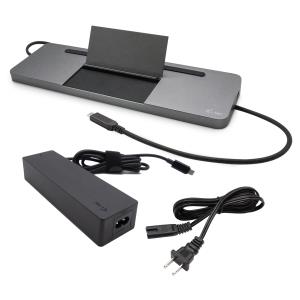

This product is a product set of a docking station and universal charging adapter. By purchasing of this kit, you get a complete solution which allows you to easily connect your favourite accessories, including LAN and external monitors, as well as easily and conveniently charge your device (including your laptop or tablet).

DOCKING STATION

Connect your favourite USB-C or Thunderbolt 3 accessories and peripherals to your laptop, tablet, PC or smartphone. Power and provide video output for up to three external monitors (applies to Windows systems) at the same time.

Plug the docking station into the USB-C or Thunderbolt 3 port of your computer with just a single cable (60 cm) and you can start using it immediately. Drivers are installed from the system automatically. The docking station was designed to also be used as an ergonomic stand for your laptop or tablet.

Note: macOS does not support Multi Stream Transport (MST) technology, meaning that when connected to a device running macOS, all connected monitors will display the same image.

UNIVERSAL CHARGER

This universal USB-C power adapter with power of 112 W is a great choice for powering any laptop or other device equipped with a USB-C connector that supports USB-C Power Delivery with a maximum power demand of 100 W.

The voltage is set automatically according to the USB Power Delivery specification 2.0 v1.2 in the individual profiles in following steps: 5 V / 9 V / 12 V / 15 V / 19 V / 20 V with max. 5 A current consumption. The power adapter is lightweight and very portable; it is equipped with intelligent current overload, overvoltage, short circuit and overheating protection.

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB Power Delivery

Yes

USB Power Delivery up to

85 W

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

1

Combo headphone/mic port

Yes

Headphone connectivity

3.5 mm

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash)

HD type

4K Ultra HD

Number of displays supported

3

Maximum refresh rate

60 Hz

Product colour

Grey

Housing material

Aluminium

Power

Power source type

AC

Power supply

100 W

Compatible power plug types

EU

Power cable length

1.5 m

USB cable length

0.6 m

Software

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Other operating systems supported

Android, ChromeOS

Weight & dimensions

Width

269 mm

Depth

84 mm

Height

23 mm

Weight

324 g

Packaging data

Package width

316 mm

Package depth

130 mm

Package height

30 mm

Package weight

830 g

Packaging content

Cables included

AC

AC adapter included

Yes

Quick start guide

Yes

Manual

Yes
