Introduction

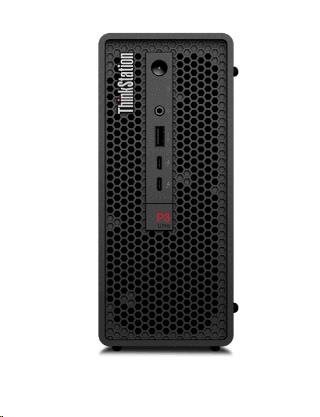

The Lenovo ThinkStation P3 Ultra features a?revolutionary form factor that is redefining the power of small. With the latest 13th Gen Intel® Core™ processors, up to NVIDIA RTX™ A5500 mobile graphics,?super-fast memory, and cutting-edge?storage,?this workstation?breaks new?ground?by?delivering superior performance and flexibility in a?chassis less than four liters in total?volume.

Processor

Processor manufacturer

Intel

Processor generation

13th gen Intel® Core™ i7

Processor model

i7-13700

Processor family

Intel® Core™ i7

Processor cores

16

Performance cores

8

Efficient cores

8

Performance-core base frequency

2.1 GHz

Efficient-core base frequency

1.5 GHz

Efficient-core Max Turbo Frequency

4.1 GHz

Performance-core Max Turbo Frequency

5.1 GHz

Processor cache

30 MB

Processor cache type

Smart Cache

Processor threads

24

Bus type

DMI4

Number of processors installed

1

Memory

Internal memory

16 GB

Maximum internal memory

128 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

2 x 8 GB

Memory slots

4x SO-DIMM

Memory clock speed

4800 MHz

Non-ECC

Y

Memory channels

Dual-channel

Storage

Card reader integrated

N

Total storage capacity

512 GB

Storage media

SSD

Optical drive type

N

Number of storage drives installed

1

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Y

SSD form factor

M.2

Graphics

Discrete graphics card

Y

Discrete GPU manufacturer

NVIDIA

Discrete graphics card model

NVIDIA T400

Discrete graphics memory type

GDDR6

Discrete graphics card memory

4 GB

Number of discrete graphics cards

1

On-board graphics card

Y

On-board graphics card model

Intel UHD Graphics 770

Graphics card Mini DisplayPort ports quantity

3

Network

Ethernet LAN

Y

Ethernet LAN data rates

100,1000,2500 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Wi-Fi

N

Bluetooth

N

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

Thunderbolt 4 ports quantity

2

Intel® Thunderbolt 4

Y

DisplayPorts quantity

3

DisplayPort version

1.2

Ethernet LAN (RJ-45) ports

2

Combo headphone/mic port

Y

Design

Chassis type

Mini Tower

Volume

3.9 L

Placement supported

Horizontal/Vertical

Cable lock slot

Y

Cable lock slot type

Kensington

Product colour

Black

Performance

Motherboard chipset

Intel W680

Audio chip

Realtek ALC897-Q

Built-in speaker(s)

Y

Number of speakers

1

Password protection

Y

Password protection type

BIOS, Power on, Supervisor

BIOS type

UEFI

Trusted Platform Module (TPM)

Y

Product type

Workstation

Software

Operating system installed

Windows 11 Pro

Operating system architecture

64-bit

Operating system language

German, Dutch, English, French, Italian

Processor special features

CPU configuration (max)

1

Power

Power supply

230 W

Power supply input voltage

100 - 240 V

Operational conditions

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 12192 m

Certificates

Certification

EPEAT Gold Registered ENERGY STAR 8.0 TCO Certified 9.0 RoHS compliant MIL-STD-810H

Weight & dimensions

Width

87 mm

Depth

223 mm

Height

202 mm

Weight

3.6 kg

Packaging content

Display included

N

Mouse included

Y

Keyboard included

Y
