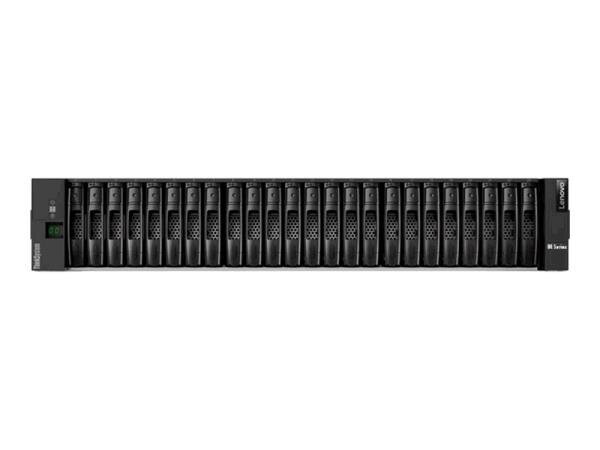

Email: info@conxion.beLenovo ThinkSystem DE2000H is a low-cost,hybrid storage system that is designed to provide performance,simplicity,capacity,security,and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options,flexible drive configurations,and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads,including big data and analytics,video surveillance,technical computing,backup and recovery,and other storage I/O-intensive applications.
| General | |
|---|---|
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Localisation | EMEA |
| Chassis | |
| Installed Devices / Modules Qty | 2 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Storage | |
| HDD Array External Interface | 16Gb Fibre Channel,SAS 12Gb/s |
| Storage Controller | |
| Type | 2 x RAID |
| Interface Type | SAS 12Gb/s |
| Data Transfer Rate | 1.2 GBps |
| Cache / Buffer Size (Max) | 8 GB |
| RAID Level | RAID 0,RAID 1,RAID 3,RAID 5,RAID 6,RAID 10 |
| Hard Drive | |
| Type | SSD - hot-swap |
| Capacity | 2 x 800 GB |
| Drive Writes Per Day (DWPD) | 3 |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 22 (free) x hot-swap - 2.5" SFF |
| Expansion Slots | 2 (total) / 0 (free) x expansion slot |
| Interfaces | 4 x 16Gb Fibre Channel - SFP+ 2 x Ethernet 1000 (management) - RJ-45 2 x serial (management) - 5 pin Micro-USB Type A 2 x serial (management) - RJ-45 8 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 913 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions &Weight | |
| Width | 44.9 cm |
| Depth | 55.3 cm |
| Height | 8.5 cm |
| Weight | 27.6 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
