Introduction

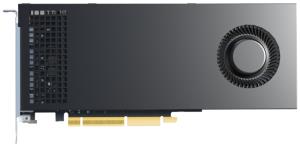

Matrox LUMA A380

Full height single slot PCIe Gen4x 16 (x8 electrical) quad graphics card delivers the best display density, resolution, and performance for demanding multi-monitor applications.?

Drive two 8K displays or up to four high-resolution displays or projectors—up to 5K60—from a single LUMA A380 graphics card. Designed and built for reliability, stability, and ease of deployment, these single-slot PCIe®?4.0 x0 card with four full-size DisplayPort™ 2.1 connectors deliver superior graphics performance for today’s 8K HDR desktop applications. The LUMA A380 is ideal for multi-screen desktops, workstations, and digital signage players for a range of applications. Matrox LUMA Series is powered by Intel® Arc™ graphics.


High density output

Deliver the best display density, resolution, and performance for demanding multi-monitor applications with PCIe® 4.0 x8 graphics cards featuring four native DisplayPort connectors. A full height single slot quad-output graphics card, LUMA A380 delivers the best display density, resolution, and performance for demanding multi-monitor applications—using only a single slot.

Low power. Maximum efficiency.

LUMA A380’s low power consumption at 75W offers vendors simpler integration and a lower cost of ownership. Its low power consumption means you can install multiple cards in one system while using less power. LUMA A380 also eliminates the need for external power supplies.

HDCP compliant

LUMA Series graphics cards are designed for a range of professional multi-monitor desktop applications in control rooms, enterprises, industries, government, military, pro AV, digital signage, security, and more. HDCP compliance makes it possible to display protected content.

Advanced capabilities

With up to 6 GB of graphics memory, LUMA A380 graphics cards bring superior video playback and performance to a wide variety of video wall applications. Support for Microsoft® DirectX® 12 Ultimate, OpenGL® 4.6, OpenCL™ 3.0, Vulkan® 1.3, and Intel® oneAPI Video Processing Library (oneVPL), and OpenVINO™ enables you to run the latest professional applications.

Long product lifecycle

Benefit from a product longevity of five years and dedicated customer support. Your product carries a three-year warranty and has an available extended warranty to ensure maximum protection.

Processor

Graphics processor family

Intel

Graphics processor

Arc A380

Memory

Discrete graphics card memory

6 GB

Graphics card memory type

GDDR6

Ports & interfaces

Interface type

PCI Express x16 4.0

DisplayPorts quantity

4

DisplayPort version

2.1

Performance

DirectX version

12 Ultimate

OpenGL version

4.6

OpenCL version

3.0

HDCP

Y

HDCP version

2.3

Design

Cooling type

Active

Form factor

Full-Height/Full-Length (FH/FL)

Bracket height

Full-Height (FH)

Number of slots

1

Certification

• Regulatory compliance: FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B, KC (Korea) Class B, ICES-3 (Canada) Class B, UKCA (United Kingdom) Class B • Environmental compliance: EU RoHS, China RoHS, REACH

Power

Power consumption (typical)

75 W

System requirements

Windows operating systems supported

Windows 10, Windows 11

Server operating systems supported

Windows Server 2022

Minimum system requirements

Single available PCIe 3.0 (or newer) x8 slot, Resizable BAR (reBAR) or Smart Access Memory (SAM)

Technical details

Warranty period

3 year(s)

Weight & dimensions

Height

12.7 mm

Width

25.4 mm
