Introduction

Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.

Processor

Processor manufacturer

Intel

Processor family

Intel Core 3

Processor generation

Intel Core (Series 1)

Processor model

100U

Processor cores

6

Processor threads

8

Processor boost frequency

4.7 GHz

Performance cores

2

Efficient cores

4

Performance-core Max Turbo Frequency

4.7 GHz

Efficient-core Max Turbo Frequency

3.3 GHz

Performance-core base frequency

1.2 GHz

Efficient-core base frequency

0.9 GHz

Built-in processor

Yes

Processor cache

10 MB

Processor cache type

Smart Cache

Memory

Memory slots type

SO-DIMM

Number of memory slots

2

Maximum internal memory

64 GB

Supported memory types

DDR5-SDRAM

Storage

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5,M.2

SSD form factor

M.2

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash)

Graphics

On-board graphics card

Yes

On-board graphics card model

Intel Graphics

Audio

Built-in speaker(s)

No

Network

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller model

Intel Wi-Fi 6E AX211

Ethernet LAN

Yes

Wi-Fi

Yes

LAN controller

Intel I226-V

Bluetooth

Yes

Bluetooth version

5.3

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

2

DVI port

No

Microphone in

No

Combo headphone/mic port

Yes

Ethernet LAN (RJ-45) ports

2

Thunderbolt 4 ports quantity

2

DC-in jack

Yes

Expansion slots

Number of M.2 (M) slots

2

Design

Chassis type

0.84L sized PC

Product colour

Black

Cooling type

Active

Cable lock slot

Yes

Cable lock slot type

Kensington

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

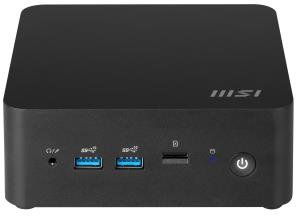

Product type

Mini PC barebone

Performance

Motherboard form factor

NUC

Motherboard chipset

Intel SoC

Number of processors supported

1

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Software

Operating system installed

No

Power

Power supply type

External AC adapter

Power supply

120 W

Weight & dimensions

Width

132.5 mm

Depth

135.6 mm

Height

50.1 mm

Weight

265 g

Package width

205 mm

Package depth

220 mm

Package height

94 mm

Package weight

1.45 kg

Other features

Warranty period

3 year(s)
