Introduction

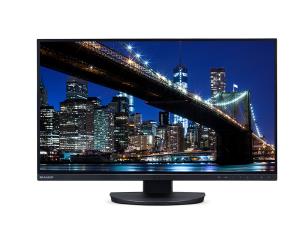

Sharp MultiSync® EA272Q – maximum screen estate, minimum cable clutter
For detail-rich applications, the high pixel density QuadHD resolution coupled with 27-inch active screen area results in an expansive digital canvas for the most productive personal workspaces. Extend your visual command even further with a near uninterrupted multi-screen configuration with ultra-narrow bezel and DisplayPort OUT daisy-chain.
Featuring powerful 90W USB Type-C connectivity and embedded LAN, the EA272Q becomes a fully functioning Docking Hub solution. With just a single cable to connect notebook/PC to the display whilst powering your device, workspace remains clear of cable clutter and e-waste is minimised. The display’s sustainable functionality continues, achieving energy savings of up to 30% by enabling sensor technology to automatically reduce brightness or power down as appropriate to usage scenarios.
Prioritising user wellbeing, the 150mm height adjustable stand and ergonomic features are easily adjusted to suit individual user requirements whilst low-blue light and flicker-free technologies ensure eye-pleasing comfort and protection.

Display

Display diagonal

68.6 cm (27")

Display resolution

2560 x 1440 pixels

HD type

4K Ultra HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

TFT/IPS

LED backlight

Yes

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

350 cd/m²

Response time

6 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Contrast ratio (dynamic)

7000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.78 million colours

Pixel pitch

0.233 x 0.233 mm

Horizontal scan range

31.5 - 94 kHz

Vertical scan range

56 - 75 Hz

Display diagonal (metric)

68 cm

Colour gamut standard

NTSC, sRGB

sRGB coverage (typical)

100%

NTSC coverage (typical)

77%

Design

Market positioning

Business

Product colour

Black

Ports & interfaces

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

90 W

HDMI

Yes

HDMI ports quantity

1

DisplayPorts quantity

2

DisplayPort out quantity

1

Headphone out

Yes

Network

Ethernet LAN

Yes

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable management

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

Yes

Adjustable height (max)

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-170 - 170°

Tilt adjustment

Yes

Tilt angle range

-5 - 35°

Power

Energy efficiency class (SDR)

C

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

13 kWh

Power consumption (typical)

27 W

Power consumption (standby)

0.5 W

AC input voltage

100 - 240 V

Power supply type

Internal

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

20 - 80 °C

Operating relative humidity (H-H)

-10 - 60%

Storage relative humidity (H-H)

10 - 85%

Weight & dimensions

Width (with stand)

611.8 mm

Depth (with stand)

250 mm

Height (with stand)

378 mm

Weight (with stand)

9.2 kg

Weight (without stand)

5.8 kg

Bezel width (side)

1 mm

Bezel width (top)

1 mm
