Introduction

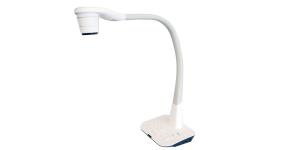

13MP document camera with 17x optical / 8x digital zoom
Optoma's DC460 takes a live workspace and allows you to distribute real-time image capture to large audiences when combined with any big screen technology.

Sharing video content remotely has never been easier, simply connect to any one of the video conferencing tools (via a PC) to enable sharing with remote audiences. It's a great way to create an interactive learning or demonstration space, perfect for classrooms, boardrooms and lecture theatres.

Camera

Effective sensor resolution

13 MP

Optical sensor size

25.4 / 3.2 mm (1 / 3.2")

Sensor type

CMOS

Supported graphics resolutions

3860 x 2160

Video recording

Yes

Maximum frame rate

30 fps

Light source

LED

Lens system

Optical zoom

17x

Digital zoom

8x

Ports & interfaces

Interface

USB 2.0

HDMI input ports quantity

1

HDMI output ports quantity

1

USB connector type

USB Type-A

VGA (D-Sub) input ports

1

VGA (D-Sub) output ports

1

RS-232 ports

1

Technical details

Document size (max)

A3

Product colour

White

Image stabilizer

Yes

Lamp type

LED

Power

Power supply type

DC

Power consumption (typical)

1.6 W

Power consumption (standby)

0.1 W

Operating voltage

5 V

Weight & dimensions

Width

200 mm

Depth

160 mm

Height

530 mm
