Introduction

19.5" ALL-IN-ONE PC FOR POS, POI AND KIOSK APPLICATIONS

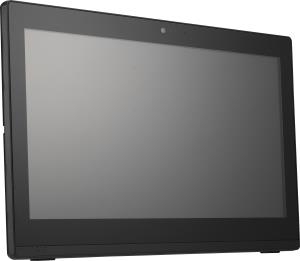

The Shuttle XPC all-in-one P9000XA is a fully configured All-in-One PC (without operation system) with capacitive 19.5" touchscreen. An Intel Ultra-Low-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Display

Display diagonal

49.5 cm (19.5")

Display resolution

1600 x 900 pixels

Touchscreen

Y

HD type

HD+

Native aspect ratio

16:9

Panel type

LCD

Processor

Processor manufacturer

Intel

Processor model

5205U

Processor family

Intel® Celeron®

Processor frequency

1.9 GHz

Processor cores

2

Processor cache

2 MB

Configurable TDP-down frequency

0.8 GHz

Configurable TDP-down

12.5 W

Memory

Internal memory

8 GB

Internal memory type

DDR4-SDRAM

Maximum internal memory

64 GB

Memory slots

2

Memory slots type

SO-DIMM

Memory clock speed

2400 MHz

Memory form factor

DIMM/SO-DIMM

Storage

Total storage capacity

500 GB

Storage media

SSD

Number of storage drives installed

1

Total SSDs capacity

500 GB

Number of SSDs installed

1

SSD capacity

500 GB

SSD interface

NVMe,PCI Express

SSD form factor

M.2

Optical drive type

N

Card reader integrated

Y

Compatible memory cards

SD,SDHC,SDXC

Graphics

Discrete graphics card

N

Discrete graphics card model

Not available

On-board graphics card

Y

On-board graphics card model

Intel® UHD Graphics

Audio

Built-in speaker(s)

Y

Number of speakers

2

RMS rated power

2 W

Built-in microphone

Y

Camera

Built-in camera

Y

Camera resolution

1920 x 1080 pixels

Camera HD type

Full HD

Network

Wi-Fi

Y

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

WLAN controller manufacturer

Realtek

WLAN controller model

Realtek RTL8821CE

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth

Y

Bluetooth version

4.2

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

1

HDMI version

1.4b

VGA (D-Sub) ports quantity

1

Headphone outputs

1

Microphone in

Y

DC-in jack

Y

Design

Product colour

Black

Cable lock slot

Y

Cable lock slot type

Kensington

Wall mountable

Y

VESA mounting

Y

Panel mounting interface

100 x 100 mm

Country of origin

China

Performance

Market positioning

Business

Product type

All-in-One PC

Motherboard chipset

Intel SoC

Trusted Platform Module (TPM)

Y

Software

Operating system installed

N

Processor special features

Enhanced Intel SpeedStep Technology

Y

Intel Clear Video Technology

Y

Intel Flex Memory Access

Y

Intel Trusted Execution Technology

N

Intel VT-x with Extended Page Tables (EPT)

Y

Intel TSX-NI

N

Intel Software Guard Extensions (Intel SGX)

Y

Intel 64

Y

Execute Disable Bit

Y

Idle States

Y

CPU configuration (max)

1

Embedded options available

N

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel Virtualization Technology (VT-x)

Y

Power

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output voltage

19 V

Weight & dimensions

Width (with stand)

487 mm

Depth (with stand)

44 mm

Height (with stand)

321 mm

Weight (with stand)

4.29 kg

Package weight

5.62 kg

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Certificates

Certification

CE, RED, FCC, RCM, VCCI

Sustainability

Sustainability certificates

ENERGY STAR, RoHS

Packaging content

Cables included

AC

Other features

Harmonized System (HS) code

84714100
