Introduction

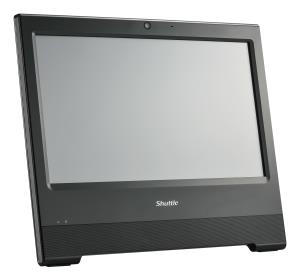

The Shuttle XPC all-in-one X50V9 is the latest addition to the X50 Series and is powered by a Gen12/13 Intel ULV processor. The modern processor architecture helps improve on power consumption and computing power. The existing WLAN function can optionally be supplemented with a 4G/5G function with up to 4 antennas. Thanks to its passive heatpipe cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Display

Display diagonal

39.6 cm (15.6")

Display resolution

1366 x 768 pixels

Touchscreen

Yes

HD type

HD

Native aspect ratio

16:9

Display brightness

220 cd/m²

Panel type

LCD

Processor

Processor manufacturer

Intel

Processor family

Intel® Celeron®

Processor model

7305

Performance cores

1

Efficient cores

4

Processor cache

8 MB

Processor cache type

Smart Cache

Processor base power

15 W

Maximum turbo power

55 W

Memory

Internal memory

8 GB

Internal memory type

DDR5-SDRAM

Maximum internal memory

64 GB

Memory slots

2

Memory slots type

SO-DIMM

Memory clock speed

4800 MHz

Storage

Total storage capacity

120 GB

Storage media

SSD

Number of storage drives installed

1

Total SSDs capacity

120 GB

Number of SSDs installed

1

SSD capacity

120 GB

SSD interface

PCI Express

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Optical drive type

No

Graphics

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card

Yes

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel® UHD Graphics

Audio

Built-in speaker(s)

Yes

Number of speakers

2

RMS rated power

4 W

Built-in microphone

Yes

Audio chip

Realtek ALC888S

Camera

Built-in camera

Yes

Total megapixels

2 MP

Camera resolution

1920 x 1080 pixels

Camera HD type

Full HD

Network

Wi-Fi

Yes

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

WLAN controller manufacturer

Realtek

WLAN controller model

Realtek RTL8821CE

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

4.2

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

2.0b

VGA (D-Sub) ports quantity

1

Headphone outputs

1

Microphone in

Yes

DC-in jack

Yes

Serial ports quantity

2

Design

Product colour

Black

Cable lock slot

Yes

Cable lock slot type

Kensington

Wall mountable

Yes

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

On/off button

Yes

Performance

Product type

All-in-One PC

Market positioning

Business

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Software

Operating system architecture

64-bit

Operating system installed

Windows 10 IoT Enterprise LTSC

Power

AC adapter power

90 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output voltage

19 V

Weight & dimensions

Width (with stand)

391 mm

Depth (with stand)

42 mm

Height (with stand)

327 mm

Weight (with stand)

3.5 kg

Package weight

4.2 kg

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Certificates

Compliance certificates

BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus

Sustainability

Sustainability certificates

ENERGY STAR, ErP

Packaging content

AC adapter included

Yes

Drivers included

Yes

Power cord included

Yes

Logistics data

Harmonized System (HS) code

84714100
