Introduction

Seamless Coverage to Remove Dead Zones

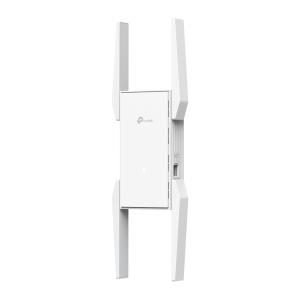

EAP673-Extender, featuring four high-gain antennas and mesh technology, eliminates dead zones, extending coverage by 1500 ft² (140 m²) . Enjoy seamless roaming for uninterrupted connectivity.

Effortless Installation with AC Power
Overcome cabling challenges with EAP673-Extender, delivering seamless Wi-Fi via AC power. Enjoy stable, high-performance coverage—no extra wires needed.

AP Mode for Flexible Deployment
EAP673-Extender's built-in AP mode delivers a robust, stable Wi-Fi signal without a PoE switch or infrastructure renovations, enhancing flexibility and reducing costs.

Performance

Type

Network repeater

Ethernet LAN data rates

10,100,1000 Mbit/s

BeamForming

Yes

Antenna

Antennas quantity

4

Antenna type

External

Transmitting power (CE)

<20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <30 dBm (5 GHz, band3, EIRP)

Transmitting power (FCC)

<25 dBm (2.4 GHz) <28 dBm (5 GHz)

Network

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Wi-Fi data rate (max)

4800 Mbit/s

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Security algorithms

64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Design

Product colour

White

Housing material

Polycarbonate (PC)

Quantity per pack

1 pc(s)

Reset button

Yes

Management features

Airtime scheduling

Yes

Power

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (max)

18 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

80 mm

Depth

37.8 mm

Height

160 mm

Weight

436.6 g

Packaging content

Quick start guide

Yes

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), JRF, RCM, RoHS, UL, VCCI
