Introduction

What This Product Does

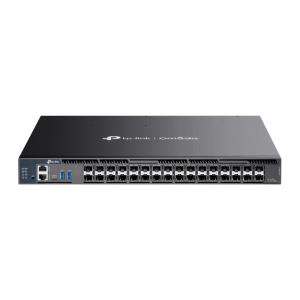

The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.

High-speed Connectivity and Powerful Stacking
6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available
Internal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Management features

Switch type

Managed

Switch layer

L2+/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Cloud-managed

Yes

ARP inspection

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type

No

SFP module slots quantity

6

SFP+ module slots quantity

26

USB Type-A ports quantity

2

USB Type-C ports quantity

1

Number of management ports

1 pc(s)

Console port

RJ-45

Network

Networking standards

IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah

10G support

Yes

Port mirroring

Yes

IP routing

Yes

VLAN support

Yes

Virtual LAN features

MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Data transmission

Switching capacity

820 Gbit/s

Forwarding rate

610.1 Mpps

MAC address table

128000 entries

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

8 MB

Security

DHCP features

DHCP Option 82

Access Control List (ACL)

Yes

IGMP snooping

Yes

MAC address filtering

Yes

Static port security

Yes

SSH/SSL support

Yes

Multicast features

Multicast support

Yes

Protocols

Management protocols

SNMPv1/v2c/v3

Design

Rack mounting

Yes

Stackable

Yes

Product colour

Black

Number of fans

4 fan(s)

Performance

Minimum system requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.

Power

Power source

AC

Redundant power supply (RPS) support

Yes

Number of power supply units

2

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Operational conditions

Operating temperature (T-T)

-5 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

440 mm

Depth

380 mm

Height

44 mm

Packaging data

Cables included

Power

Quick start guide

Yes

Rack mount kit

Yes
