Introduction

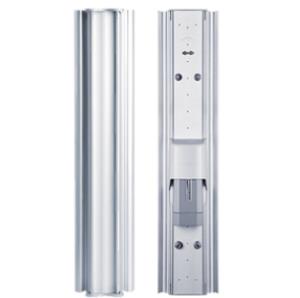

Advanced Carrier-Class PtMP Basestation Antenna
Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti's best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology

Reduced Co-Location Interference
Drawing on Ubiquiti's depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co-location deployments.

Adjustable Beamwidth Configuration
Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60 °, 90 °, or 120 ° sector.
Antenna gain changes according to the configured beamwidth.

Increased Performance
The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket M Titanium.

- 20% increase in performance with PtMP networks
- Up to 90% performance improvement in a co-location environment
- Increased durability in harsh weather

Easily Mount and Protect Your Rocket
The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.

Performance

Frequency band

2.3 - 2.6 GHz

Vertical beam width

60°

Horizontal beam width

120°

Vertical beam width (2.4 GHz)

4°

Horizontal beam width (2.4 GHz)

4°

Antenna gain level (max)

17 dBi

Features

Antenna type

Sector antenna

Antenna connector type

RP-SMA

Connector gender

Male

Polarization

Dual polarization

Voltage Standing Wave Ratio (VSWR)

1.5:1

Mounting

Wall

Purpose

Outdoor

Product colour

White

Certification

EN 302 326 DN2 CE, FCC, IC

Weight & dimensions

Width

773 mm

Depth

372 mm

Height

120 mm

Weight

6.4 kg

Packaging content

Quantity per pack

1 pc(s)
