Introduction

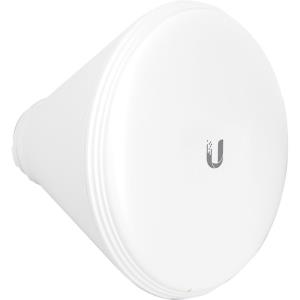

5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co-location performance without sacrificing gain.

Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Performance

Frequency band

5.15 - 5.85 GHz

Horizontal beam width

30°

Vertical beam width

30°

Antenna gain level (max)

19 dBi

Features

Antenna type

Horn antenna

Polarization

Dual polarization

Voltage Standing Wave Ratio (VSWR)

1.7:1

Survival wind speed

200 km/h

Wind load

56

Isolation

17 dB

Product colour

White

Weight & dimensions

Depth

184.2 mm

Diameter

22.1 cm

Weight

1.1 kg

Packaging content

Quantity per pack

1 pc(s)
