Introduction

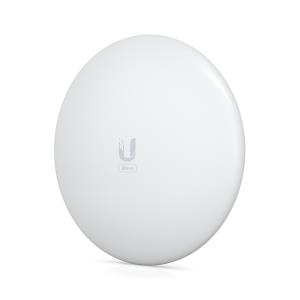

Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

Features

5 GHz

Y

Maximum data transfer rate

2000 Mbit/s

Channel bandwidth

2160 MHz

Isolation

20 dB

Security

Security algorithms

WPA2-AES, WPA2-PSK

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Power

Power over Ethernet (PoE)

Y

Power consumption (max)

18 W

Design

Placement

Pole

Product colour

White

International Protection (IP) code

IPX6

Reset button

Y

LED indicators

GPS, Link, Power

Antenna

Antenna type

Internal

Antenna gain level (max)

41 dBi

Performance

Built-in processor

Y

Internal memory

512 MB

Operating system installed

AirOS

Weight & dimensions

Width

424.4 mm

Height

166.2 mm

Operational conditions

Operating relative humidity (H-H)

-40 - 60%

Storage temperature (T-T)

5 - 95 °C
