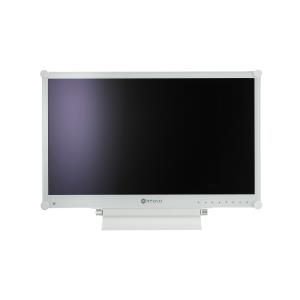

Dental Monitor - Dr22g - 22in - 1920x1080 (full Hd) - White

Part Number:
DR-22G
Language:
UK
 Without VATWith VAT
Base Price:€639,84€774,21
Recupel:+ €1,41+ €1,71
Total:€641,25€775,92

Introduction

What Are Dental Monitors?
Dental monitors are designed for viewing images like x-rays of teeth to help dentists identify problems. With a computer during treatments, the monitors allow entering data to the medical charts, scheduling patient appointments, and showing digital dental images and patient education videos. For safety concerns, dental monitors can withstand cleaning and disinfection between patients is essential.

Knowing that providing a safe dental operatory environment to the patients is a dentist's major concern; the DR-Series dental monitors are certified with EN/IEC 60601-1, ensuring a safe and reliable medical power supply by equipped with medical-grade power adapter and equipotential terminal connector. Along with NeoVT Optical Hard Glass Screen and white metal casing, the dental monitors can be cleaned and disinfected with standard cleaning solutions for dental clinics. Besides, to accommodate the need to view x-ray films, the DR-Series dental monitors feature an X-ray illuminator mode, which allows dentists to diagnose without switching to other dedicated X-ray view box. From dental practice to patient education, the DR-Series are the best monitor for the dental office.

Versatility and Adaptability
The DR-Series dental monitors are adaptable to fit every conceivable dental environment. Designed with DC 24V power supply, the displays are ideal for long-distance (up to 5 meters) cable management between dental equipment and monitors. Compatible with VESA standard mounts, the monitors can be mounted on a rotatable arm with handles for easy movement on a dental chair.

Medical Grade Safety Certification
The dental monitors with exceptionally clear images help dental professionals to be more effective with patients. With cutting-edge gamma correction, black-level alignment adjustability, and high contrast ratio, the DR-Series dental monitors can capture darker details and deliver premium medical images, thereby enhancing dental treatment quality.

Easy X-ray Film Viewing
The DR-Series monitors feature a unique X-ray illuminator mode that allows dental professionals to easily view X-ray films without separately installing a dedicated X-ray view box - just switch in or out of illuminator mode on the on-board keypad. Both physical films and digitalized colour images are viewable on the same monitor, making the DR-Series an optimal operatory monitor for dentists.

Easy to Clean and Reliable Design
The anti-acid and anti-alkali coating treatment of NeoVT Optical Hard Glass Screen ensures that the DR-Series dental monitors withstand cleaning and disinfection. Coupled with front-sided IP22 compliance and white metal casing, the DR-Series dental monitors are dust and waterproof and easy to detect contamination for any dental use.

Display

Display diagonal

54.6 cm (21.5")

Display brightness (typical)

250 cd/m²

Display resolution

1920 x 1080 pixels

Response time

3 ms

HD type

Full HD

Display technology

LCD

Backlight type

LED

Screen shape

Flat

Supported graphics resolutions

1920 x 1080 (HD 1080)

Contrast ratio (typical)

20000000:1

Viewing angle, horizontal

170°

Viewing angle, vertical

160°

Display number of colours

16.78 million colours

Panel type

TFT

Pixel pitch

0.248 x 0.248 mm

Horizontal scan range

24 - 83 kHz

Vertical scan range

50 - 75 Hz

Surface hardness

9H

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

Multimedia

Built-in speaker(s)

Y

Number of speakers

2

RMS rated power

4 W

Built-in camera

N

Design

Market positioning

Medical

Product colour

White

Certification

FCC, BSMI, CE, IEC / EN 60601-1, MDD, RoHS, WEEE, REACH

Ports & interfaces

VGA (D-Sub) ports quantity

1

DVI port

Y

DVI-D ports quantity

1

HDMI

Y

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

1

Audio input

Y

Audio output

Y

DC-in jack

Y

Ergonomics

Panel mounting interface

75 x 75,100 x 100 mm

Cable lock slot

Y

Cable lock slot type

Kensington

VESA mounting

Y

Height adjustment

N

Tiltable

Y

Tilt angle range

0 - 17°

Power

Power consumption (typical)

21 W

Power consumption (standby)

0.7 W

Power consumption (off)

0.7 W

Annual energy consumption

31 kWh

Energy efficiency scale

A+++ to D

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Sustainability

Sustainability certificates

RoHS

Weight & dimensions

Width (with stand)

513.2 mm

Depth (with stand)

155 mm

Height (with stand)

368.5 mm

Weight (with stand)

6.8 kg

Width (without stand)

51.3 cm

Depth (without stand)

5.62 cm

Height (without stand)

32.4 cm

Weight (without stand)

6.2 kg

Packaging data

Stand included

Y

Cables included

AC, Audio (3.5mm), VGA

Package width

614 mm

Package depth

204 mm

Package height

477 mm

Package weight

9.3 kg

Package type

Box

Other features

Energy efficiency class (old)

A
