ALLIED TELESIS

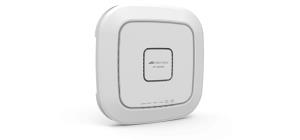

IEEE 802.11ac Wave2 wireless access point with tri-band radios and embedded antenna. AC power adapte (AT-TQ5403)

IEEE 802.11ac Wave2 wireless access point with tri-band radios and embedded antenna. AC power adapte (AT-TQ5403)

Referentie:
AT-TQ5403
Taal:
UK
 Zonder BTWBTW inbegrepen
Base Price:€465,65€563,44
Recupel:+ €0,04+ €0,05
Totaal:€465,69€563,48

Inleiding

Hybrid 3-radio 802.11ac Wave 2 Wireless Access Point
The Allied Telesis Enterprise-class TQ5403 Hybrid 3-radio Wireless Access Point features IEEE 802.11ac Wave 2 technology with two spatial streams to deliver a raw capacity of 2.133 Gigabits.

The innovative Channel Blanket hybrid mode of the TQ5403 enables optimized wireless networking for all environments. By allowing simultaneous multi-channel and single-channel WLAN connectivity from the same access point, network administrators can combine the performance attributes of the two architectures to best suit their specific deployment requirements.

The TQ5403 has a single 2.4GHz radio and dual 5GHz IEEE 802.11ac radios, and supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. Combined with a comprehensive feature-set, the APs provide a superior wireless solution for customers from SMBs to large Enterprises.

Smaller businesses can operate the TQ5403 in standalone mode, using its intuitive web-based user interface. For larger installations it can be managed by Allied Telesis Autonomous Wave Control (AWC). With AWC, the wireless network is regularly analyzed, and APs are dynamically updated to reduce interference, minimize coverage gaps, and optimize performance-all with no user intervention. Allied Telesis network management platform, Vista Manager EX, has an AWC wireless management plugin that supports up to 3,000 APs.

Flexible deployment options enable easy installation, with the TQ5403 able to be used on the desktop or mounted on a wall or ceiling. Power may be supplied by Power over Ethernet, for the simplicity of having the Ethernet network connect and power the APs, or by an optional AC power adapter.

Specifications


Data transmission
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate2133 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Wi-Fi Multimedia†(WMM)/(WME)Yes
Auto Wireless Distribution System (WDS)Yes
SyslogYes
Firmware upgradeableYes
Frequency band2.4-2.4835; 5.15-5.25; 5.25-5.35; 5.47-5.725; 5.725-5.85 GHz
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Modulation16-QAM,64-QAM,256-QAM,BPSK,CCK,DBPSK,DQPSK,DSSS,OFDM,QPSK
Ethernet LAN data rates10,100,1000 Mbit/s
CertificationFCC, CE, RCM, IMDA, KC, MIC, NBTC, BSMI/NCC, OFCA, SIRIM, WPC, IC
EN 60950-1, EN 62368-1, UL 60950-1, UL 62368-1
AS/NZS 2772.2, EN 301 489-1, EN 301 489-17, EN 55024, EN 55032 B, EN 61000-3-2 A, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC 47 CFR 15 B, VCCI B
AS/NZS 4268, EN 300 328, EN 301 893, FCC 47 CFR 15 C, FCC 47 CFR 15 E3, FCC 2
Maximum data transfer rate2133 Mbit/s
Band steeringYes
Wireless LAN features
Frequency band2.4-2.4835; 5.15-5.25; 5.25-5.35; 5.47-5.725; 5.725-5.85 GHz
Modulation16-QAM,64-QAM,256-QAM,BPSK,CCK,DBPSK,DQPSK,DSSS,OFDM,QPSK
Network
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Security
Cable lock slotYes
Auto Wireless Distribution System (WDS)Yes
Security algorithms64-bit WEP,128-bit WEP,HTTPS,SNMP,WPA,WPA-AES,WPA-Enterprise,WPA-PSK,WPA-TKIP,WPA2,WPA2-AES,WPA2-CCMP,WPA2-Enterprise,WPA2-PSK,WPA2-TKIP
MAC address filteringYes
Service Set Identifier (SSID) featuresHidden SSID
Certificates
CertificationFCC, CE, RCM, IMDA, KC, MIC, NBTC, BSMI/NCC, OFCA, SIRIM, WPC, IC
EN 60950-1, EN 62368-1, UL 60950-1, UL 62368-1
AS/NZS 2772.2, EN 301 489-1, EN 301 489-17, EN 55024, EN 55032 B, EN 61000-3-2 A, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC 47 CFR 15 B, VCCI B
AS/NZS 4268, EN 300 328, EN 301 893, FCC 47 CFR 15 C, FCC 47 CFR 15 E3, FCC 2
Features
2.4 GHzYes
5 GHzYes
Wi-Fi Multimedia†(WMM)/(WME)Yes
Frequency band2.4-2.4835; 5.15-5.25; 5.25-5.35; 5.47-5.725; 5.725-5.85 GHz
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Modulation16-QAM,64-QAM,256-QAM,BPSK,CCK,DBPSK,DQPSK,DSSS,OFDM,QPSK
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate2133 Mbit/s
Fast roamingYes
Band steeringYes
Protocols
DHCP clientYes
Management features
SyslogYes
Firmware upgradeableYes
Ports & interfaces
Ethernet LAN (RJ-45) ports2
Power
Power consumption (max)20 W
Power consumption (typical)10 W
Power over Ethernet (PoE)Yes
Input voltage100 - 240 V
Design
PlacementCeiling, Wall
Product colourWhite
CertificationFCC, CE, RCM, IMDA, KC, MIC, NBTC, BSMI/NCC, OFCA, SIRIM, WPC, IC
EN 60950-1, EN 62368-1, UL 60950-1, UL 62368-1
AS/NZS 2772.2, EN 301 489-1, EN 301 489-17, EN 55024, EN 55032 B, EN 61000-3-2 A, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC 47 CFR 15 B, VCCI B
AS/NZS 4268, EN 300 328, EN 301 893, FCC 47 CFR 15 C, FCC 47 CFR 15 E3, FCC 2
Cable lock slotYes
Cable lock slot typeKensington
Antenna
Antenna typeInternal
Antenna gain level (max)4.83 dBi
Antenna direction typeOmni-directional
Technical details
Firmware upgradeableYes
Operational conditions
Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 50 įC
Storage temperature (T-T)-25 - 70 įC
Storage relative humidity (H-H)0 - 95%
Software
Fast roamingYes
Weight & dimensions
Width215 mm
Depth215 mm
Weight700 g
Height48 mm
Packaging data
Number of products included1 pc(s)
Packaging content
Number of products included1 pc(s)
