Introduction

Cloud Networking, Refreshed

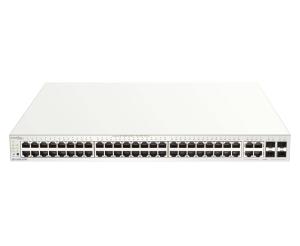

The DBS-2000 series of switches is part of the Nuclias Cloud solution - D-Link's complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.

Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.

Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.

Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.

Management features

Switch type

Managed

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Combo SFP ports quantity

4

Console port

RJ-45

Network

Networking standards

IEEE 802.3ad,IEEE 802.3at

10G support

N

Copper ethernet cabling technology

10BASE-T,100BASE-TX,1000BASE-T

Link aggregation

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

Data transmission

Switching capacity

104 Gbit/s

Forwarding rate

77.4 Mpps

Packet buffer memory

12 MB

Security

IGMP snooping

Y

Security algorithms

WPA,WPA2

Design

Product colour

Grey

LED indicators

Y

Performance

Built-in processor

Y

Processor frequency

700 MHz

Memory type

DDR3-SDRAM

Internal memory

256 MB

Flash memory

32 MB

Mean time between failures (MTBF)

236406 h

Technical details

Shipping (inner) case height

59.8 cm

Shipping (inner) case width

31.5 cm

Shipping (inner) case length

57.4 cm

Shipping (inner) case net weight

17.3 kg

Products per shipping (inner) case

2 pc(s)

Pallet gross weight (air)

242.7 kg

Master (outer) cases per pallet (air)

12 pc(s)

Products per pallet (air)

24 pc(s)

Pallet gross length

110 cm

Pallet gross width

120 cm

Pallet height (air)

133.1 cm

Pallet gross weight (sea)

354.8 kg

Master (outer) cases per pallet (sea)

18 pc(s)

Products per pallet (sea)

36 pc(s)

Pallet height (sea)

192.9 cm

Shipping (inner) case gross weight

18.6 kg

Power

AC input voltage

100 - 240 V

Power consumption (max)

478.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Power over Ethernet (PoE) ports quantity

48

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

370 W

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Heat dissipation

1634.01 BTU/h

Weight & dimensions

Width

440 mm

Depth

430 mm

Height

44 mm

Weight

6.26 kg

Packaging data

Package width

558 mm

Package depth

568 mm

Package height

149 mm

Package weight

8.66 kg
