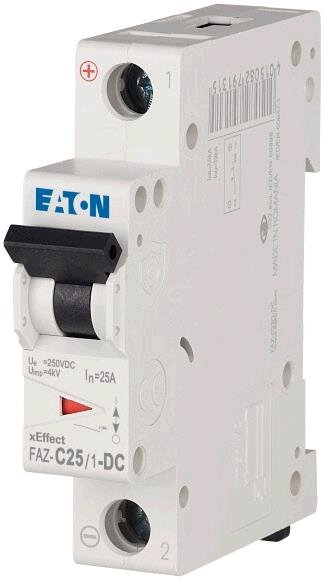

FAZ-C25/1-DC - Miniature circuit breaker (MCB), 25 A, 1p, characteristic: C, DC

Specifications

Electrical

• Standards : EN 45545-2; IEC 61373
• Rated operational voltage [U_e] : 250 (per pole) V DC
• Rated switching capacity acc. to IEC/EN 60947-2 [I_cu] : 10 kA
• Characteristic : C
• Max. back-up fuse : 100 A gL/gG
• Selectivity Class : 3
• lifespanLifespan [Operations] : > 10000
• Direction of incoming supply : Polarity dependent

Mechanical

• Standard front dimension : 45 mm
• Enclosure height : 80 mm
• Mounting width per pole : 17.5 mm
• Mounting : IEC/EN 60715 top-hat rail
• Degree of Protection : IP20, IP40 (when fitted)
• Terminals top and bottom : Twin-purpose terminals
• Terminal protection : Finger and back-of-hand proof to BGV A2
• Terminal capacities : 1 x 25 mm²
• Terminal capacities : 2 x 10 mm²
• Thickness of busbar material : 0.8 … 2 mm
• Mounting position : As required
