Inleiding

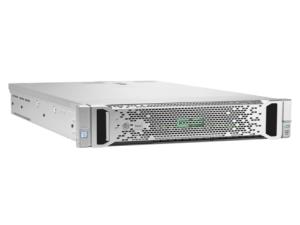

Looking for a dense but highly scalable solution for your data center application and virtualization needs? The HP ProLiant DL560 Gen9 Server is the high-density four-socket (4S) server with balanced performance, increased scalability and reliability, all in a 2U chassis.

Supporting the latest Intel® Xeon® E5-4600 v3 processors, the DL560 Gen9 Server offers greater processing power, along with increased storage capacity, IO bandwidth of up to seven (7) PCIe Gen 3.0 slots, up to 3 TBs of memory, plus the intelligence and simplicity of automated management with HP OneView and HP iLO 4. The DL560 Gen9 Server is the ideal server for virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and price/performance are paramount.

Processor

Processorfabrikant

Intel

Processormodel

E5-4640V3

Frequentie van processor

1,9 GHz

Maximale turbofrequentie van processor

2,6 GHz

Processorfamilie

Intel® Xeon® E5 v3

Aantal processorkernen

12

Processor cache

30 MB

Geheugenkanalen ondersteund door processor

Quad

Aantal geïnstalleerde processoren

1

Thermal Design Power (TDP)

105 W

Processor cache type

L3

Systeembus

8 GT/s

Processor socket

LGA 2011 (Socket R)

Processor lithografie

22 nm

Processor aantal threads

24

Processor operating modes

64-bit

Stepping

C1

FSB Parity

Nee

Bus type

QPI

aantal QPI links

2

Codenaam processor

Haswell

Tcase

77,6 °C

Maximaal intern geheugen ondersteund door processor

768 GB

Geheugentypen ondersteund door processor

DDR4-SDRAM

Geheugenbandbreedte ondersteund door de processor ( max)

68 GB/s

ECC ondersteund door processor

Ja

Execute Disable Bit

Ja

Idle States

Ja

Thermal Monitoring Technologies

Ja

Maximaal aantal PCI Express-lijnen

40

PCI Express configuraties

1x4,1x8,1x16

Verpakkingsgrootte processor

52.5 x 51 mm

Ondersteunde instructie sets

AVX 2.0

Processorcode

SR22L

Schaalbaarheid

4S

Physical Address Extension (PAE)

Ja

Physical Address Extension (PAE)

46 Bit

Ingebouwde opties beschikbaar

Nee

Processorserie

Intel Xeon E5-4600 v3

Conflictvrije processor

Nee

Geheugen

Intern geheugen

128 GB

Geheugenslots

48

Kloksnelheid geheugen

2133 MHz

Geheugenlayout

8 x 16 GB

Opslagmedia

Soort optische drive

Nee

Netwerk

Ethernet LAN

Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten

2

Aantal USB 2.0-poorten

2

VGA (D-Sub)poort(en)

1

Seriële poort(en)

1

Uitbreidingsmodules

PCI Express slots versie

3.0

Design

Type behuizing

Rack (2U)

Processor speciale functies

CPU configuratie (max)

4

Intel® Rapid Storage Technology

Nee

Enhanced Intel SpeedStep Technology

Ja

Intel® Wireless Display (Intel® WiDi)

Nee

Intel® Virtualization Technology for Directed I/O (VT-d)

Ja

Intel® Anti-Theft Technology (Intel® AT)

Nee

Intel® Hyper Threading Technology (Intel® HT Technology)

Ja

Intel® My WiFi Technology (Intel® MWT)

Nee

Intel® Turbo Boost Technology

2.0

Intel® Quick Sync Video Technology

Nee

Intel® InTru™ 3D Technology

Nee

Intel® Clear Video HD Technology (Intel® CVT HD)

Nee

Intel® Insider™

Nee

Intel® Flex Memory Access

Nee

Intel® Smart Cache

Ja

Intel® AES New Instructions (Intel® AES-NI)

Ja

Intel® Trusted Execution Technology

Ja

Intel® Enhanced Halt State

Ja

Intel® VT-x with Extended Page Tables (EPT)

Ja

Intel® Demand Based Switching

Nee

Intel® Secure Key

Ja

Intel® TSX-NI

Nee

Intel® OS Guard

Ja

Intel® Clear Video-technologie

Nee

Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID)

Nee

Intel® 64

Ja

Intel® Instructie Replay Technology

Nee

Versie Intel® Instruction Replay Technology

0,00

Versie Intel® Secure Key Technology

1,00

Intel® Virtualization Technology (VT-x)

Ja

Versie Intel® TSX-NI

0,00

Intel® Dual Display Capable Technology

Nee

Intel® FDI Technology

Nee

Intel® Fast Memory Access

Nee

ARK ID processor

85760

Energie

Netvoeding

1200 W

Redundante voeding

Ja

Gewicht en omvang

Breedte

445,5 mm

Hoogte

87,3 mm

Diepte

749,3 mm

Gewicht

27,7 kg
