Introduction

Sector Coverage

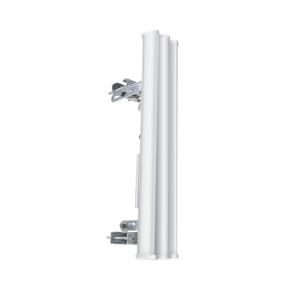

The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). Pair the RocketM's radio with the airMAX Sector Antenna's reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.

Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS
Priority is given to voice/video for seamless streaming.

Scalability
High capacity and scalability.

Long Distance
Capable of high-speed, carrier-class links

Performance

Frequency band

5.15 - 5.85 GHz

Horizontal beam width

91°

Vertical beam width

85°

Horizontal beam width (5 GHz)

4°

Vertical beam width (5 GHz)

2°

Antenna gain level (max)

20.3 dBi

Features

Antenna type

Sector antenna

Polarization

Dual polarization

Voltage Standing Wave Ratio (VSWR)

1.5:1

Mounting

Wall

Purpose

Outdoor

Product colour

White

Certification

EN 302 326 DN2

Weight & dimensions

Width

700 mm

Depth

135 mm

Height

70 mm

Weight

5.9 kg

Packaging content

Quantity per pack

1 pc(s)
